Experience a new level of intelligence with the U800SB's control system. This cutting-edge technology adapts seamlessly to different terrains and slopes, ensuring a ride that intuitively responds to changing conditions. The U800SB UTV is more than just a utility vehicle; it's a powerful and intelligent worksite companion engineered for exceptional performance with your safety in mind.
- Description
- Features
- Specifications
- Warranty
Description
SERIOUS POWER FOR SERIOUS WORK
In the world of electric utility vehicles, the U800SB stands as a pinnacle of innovation and versatility. Propelled by the groundbreaking 16kWh max gTRON Drive™ System, this 82V commercial utility vehicle from Greenworks® Commercial redefines industry standards. Delivering the equivalent power of a 31 HP, 496 cc gas engine, it emerges as a smart and forward-thinking alternative to conventional gas UTVs.
When you purchase the U800SB, you can expect:
- Adaptability for Any Job: The U800SB excels in off-road terrain and achieves speeds of up to 29 MPH. On-demand 4WD ensures an unparalleled work utility vehicle experience. A 2,500 lbs front hitch winch comes standard.
- Easy Loading and Unloading: The built-in suspension system ensures smooth transportation, and the spring-assisted dump bed makes for efficient loading and unloading.
- Unmatched Power and Performance: This electric utility vehicle is remarkably versatile, covering up to 75 miles on a single charge and tackling slopes up to 20 degrees.

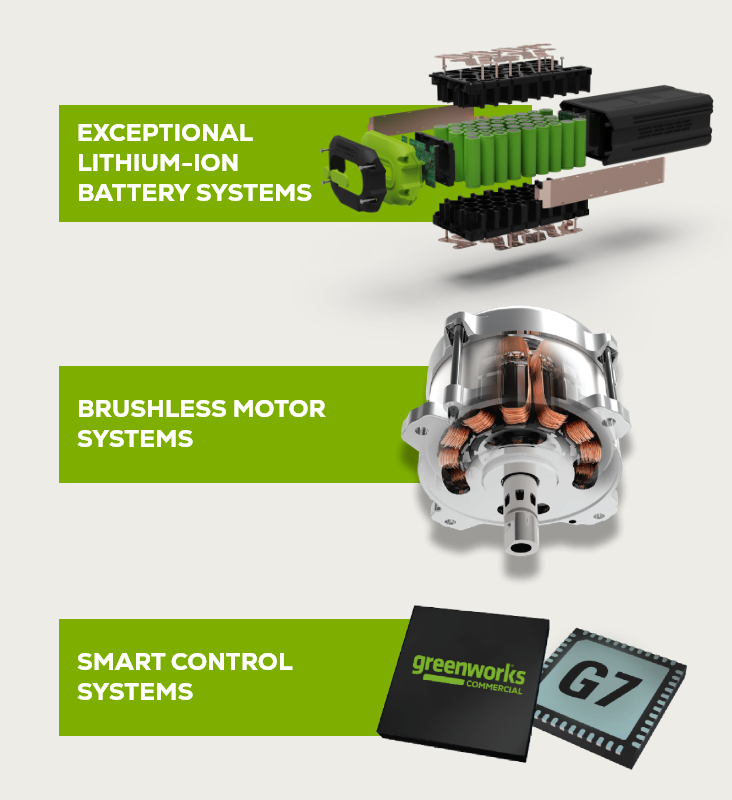

- Robust Lithium-Ion Battery: High-energy density cells, a strong protective aluminum case, and increased temperature resistance keep the 16kWh battery module safe in extreme conditions.
Features
ALL ELECTRIC
Step into a new era of cost-effective sustainability with the U800SB—an 82V 16kWh max gTRON Drive™ System electric UTV. With power equivalent to a 31 HP gas engine, this green alternative not only eliminates the need for fuel and fluids but also reduces maintenance costs, potentially saving you up to $3,000 over five years.
INTELLIGENT POWER™
RANGE PER CHARGE
With the ability to cover up to 75 miles on a single charge, the U800SB stands as a testament to efficient and enduring power. Backed by a 5-year or 2,000-hour warranty, its battery ensures both reliability and longevity, making the U800SB a reliable choice for demanding commercial use. With an 11-hour charge time, you can conveniently charge it at the end of the workday, ensuring it's ready for a full day's work the next morning.
GROUND SPEED
Drive productivity to new heights with the U800SB's swift forward speed, clocking in at an impressive 29 MPH. This ensures quick transportation across job sites, reducing downtime and enhancing overall workflow efficiency. Whether you’re navigating expansive work areas or transporting materials, the U800SB delivers the agility and speed necessary for accelerated operations. Its ability to cover ground rapidly translates to increased productivity, allowing you to accomplish tasks faster and meet tight deadlines.
FOUR-WHEEL DRIVE
The U800SB's advanced direct drive system was thoughtfully designed for peak performance in every scenario. This innovative technology ensures remarkable agility, allowing the UTV to effortlessly navigate a wide variety of terrains. The intelligent control system also takes adaptability to new heights, providing superior traction control and handling across diverse environments. Whether you’re tackling steep slopes, challenging landscapes, or unpredictable surfaces, the U800SB guarantees a consistent and reliable performance so you can have full confidence in your equipment.
ALL TERRAIN
Navigate tough terrain effortlessly thanks to the U800SB's exceptional features, including a substantial 12.2" ground clearance, independent front suspension, and an extended 72.5-inch wheelbase. Adaptive traction control also empowers you to easily conquer slopes of up to 20 degrees. This powerful combination of innovative design and cutting-edge technology ensures a smooth and controlled ride over challenging landscapes, making it the ideal companion for your toughest tasks.

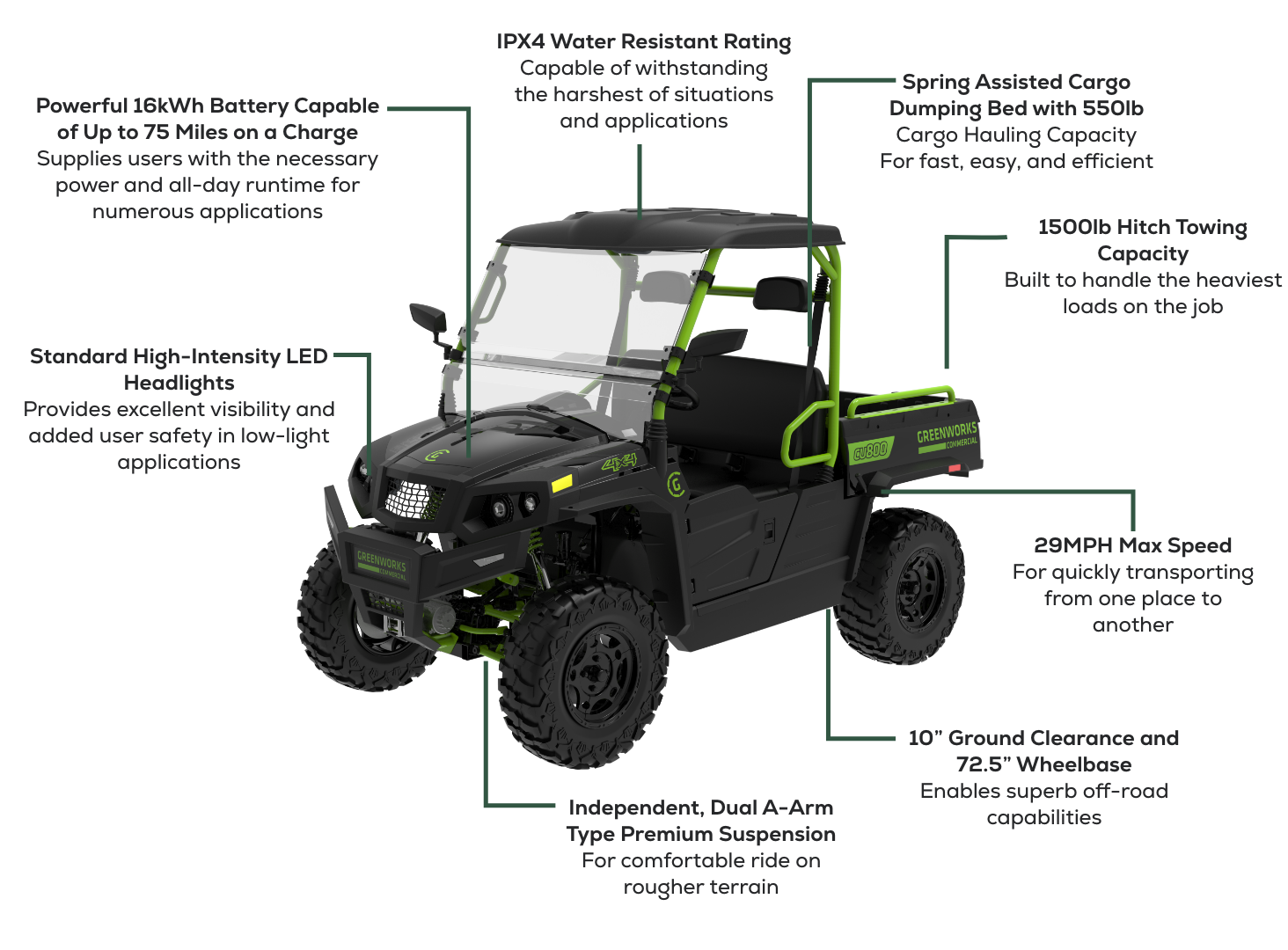

BUILT TO WORK
The U800SB electric UTVs set new standards for efficiency with a 1,500 lbs. rear hitch towing capacity and a 2,500 lbs. front hitch winch. Its thoughtful design ensures a smooth, comfortable ride, courtesy of an independent dual A-arm premium suspension and IPX4 water resistance rating for durability in any environment. Enjoy enhanced visibility with high-intensity LED headlights, an intuitive interface panel, and a convenient storage area to help streamline your tasks.
SPRING-ASSISTED CARGO DUMP BED
Effortlessly manage heavy loads with the U800SB's spring-assisted cargo dump bed, capable of transporting up to 550 lbs. in a spacious 32x42x12-inch cargo area. This highly sought-after feature enhances efficiency in commercial settings, allowing quick and easy loading and unloading. The spring-assisted mechanism reduces manual effort, streamlining your workflow and saving valuable time. Whether it's materials, tools, or equipment, the cargo bed is designed for versatility, providing a convenient solution for various hauling needs.
Specifications
UTV LINE UP
MODEL | CU400W | CU500SC & CU500SB | CU800SC & CU800SB |
BATTERY CAPACITY | 8kWh | 8kWh | 16kWh |
MAX RANGE | 65 Miles | 40 Miles | 75 Miles |
MAX FORWARD SPEED | 15 MPH | 27 MPH | 29 MPH |
TOWING CAPACITY | 500 Lbs. | 1,250 Lbs. | 1,500 Lbs. |
PAYLOAD | 1.000 Lbs. | 1,000 Lbs. | 1.000 Lbs. |
GROUND CLEARANCE | 8.5 In. | 10 In. | 12.2 In. |
OPERATING WEIGHT | 1,069 Lbs. | 1,458 Lbs. | 1,752 Lbs. |
UTV LINE UP
MODEL | CU400W | CU500SC & CU500SB | CU800SC & CU800SB |
BATTERY CAPACITY | 8kWh | 8kWh | 16kWh |
MAX RANGE | 65 Miles | 40 Miles | 75 Miles |
MAX FORWARD SPEED | 15 MPH | 27 MPH | 29 MPH |
TOWING CAPACITY | 500 Lbs. | 1,250 Lbs. | 1,500 Lbs. |
PAYLOAD | 1.000 Lbs. | 1,000 Lbs. | 1.000 Lbs. |
GROUND CLEARANCE | 8.5 In. | 10 In. | 12.2 In. |
OPERATING WEIGHT | 1,069 Lbs. | 1,458 Lbs. | 1,752 Lbs. |
TOW/HAUL SPECS
Wheelbase | 72.5" |
Ground Clearance | 10" |
Payload Capacity | 1000lbs |
Tow Capacity | 1500lbs |
Horsepower | 31HP Equivalent |
Engine Displacement (cc) | 496cc Equivalent |
Suspension System | Independent, Dual A-Arm Type |
Brakes (Front/Rear) | Hydraulic Disk Brakes |
Cargo Bed Capacity | 550lbs |
Cargo Bed Dims | 35"(L) × 45" (W) × 12"(D) × 10.24cu.ft (V) |
Ground Speed | Up to 29 MPH |
Tires/Wheels | Front: 28×9-14 | Rear: 28×11-14 |
Safety Features | Standard High-Intensity LED Headlights |
Seat (Type, Cushioning, Arm Rest) | Bench seat |
Steering Controls | EPS |
Lighting | High-Intensity LED Headlights |
Unit Weight (No battery) | 1676LBS |
Unit Dimensions | 118"(L) × 61"(W) × 75.5"(H) |
Accessory / Tool Mounting Capability | Front Hitch Winch, Mud Tire Options, Tool Rack |
IPX Rating | IPX4 Water Resistant |
BATTERY
Voltage | 82V |
Capacity (Wh) | 16kWh |
Weight (Ibs.) | 187Ibs |
Dimensions | 9.6"×22"×18.4" |
CHARGER
Charge Watts | 1.5kW |
Charge Time | 9 hours |
Weight | 6.2Ibs |
Dimensions | 13.2"×7.6" |
DRIVE SYSTEM
Voltage | 82V |
Motor Type | AC Induction |
Power Rating | 15kW Max. |
Main Gearcase | Direct Drive |
Wheel Drive System | 4WD |
Front Differential Lock | Electric control |
Multi-Mode Switch | L/M/H |
Warranty
- 82v Commercial Handheld tools, battery, and chargers: 2-year limited warranty
- 82v Consumer/Prosumer lineup: 4-year limited warranty
- 24/48v warranty: 3-year limited warranty
- Commercial ZTR Warranty: 5-year or 2,000-hour warranty
- NEW residential/consumer warranty on our COMMERCIAL ZTRs: 7-year or 700-hour warranty
- Commercial UTV warranty: 5-year battery warranty, 2-year bumper to bumper warranty
- Wearable Parts: 60-day warranty
