With no harmful emissions, the U500 can confidently operate within enclosed spaces, ensuring versatility for a wide range of commercial settings. Whether navigating through indoor facilities or maneuvering across expansive outdoor landscapes, this electric utility vehicle provides a sustainable solution without compromising on power or performance.
- Description
- Features
- Specifications
- Warranty
Description

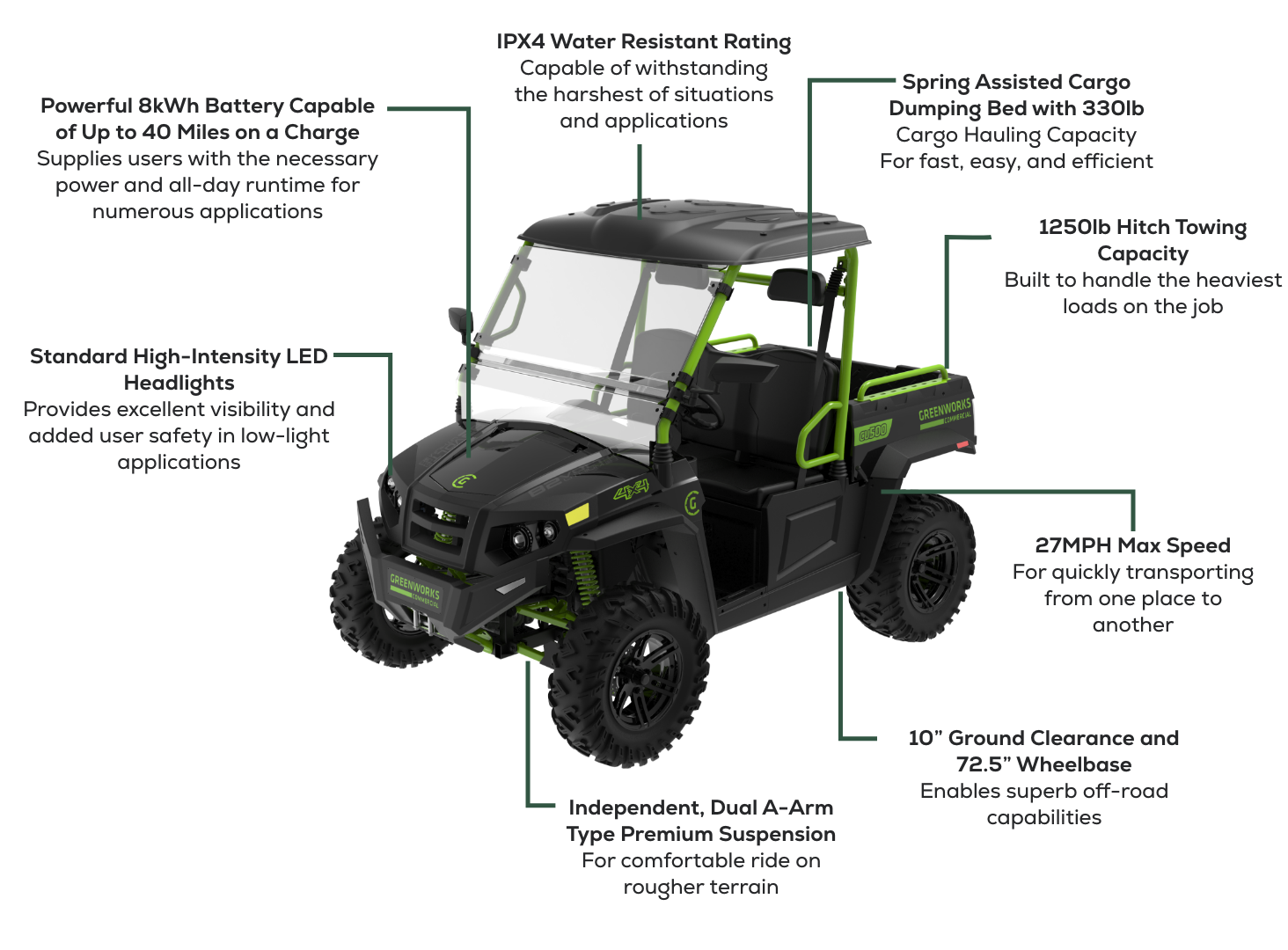

Engineered with the cutting-edge 8kWh max gTRON Drive™ System, this high-performance UTV offers the equivalent power of a 22 HP gas engine without the complex engine maintenance required to upkeep gas-powered UTVs. From intelligent terrain adaptation to powerful hauling capabilities, the U500SC combines efficiency and sustainability, making it the smart choice for professionals.
With the U500SC, you can expect:
- Long-Lasting Range: The 8kWh battery module delivers an impressive 40-mile range with a maximum speed of 27 MPH on a single charge.
- Warranty Assurance: The U500SC is covered by a 5-year battery, 2-year bumper-to-bumper warranty.
- Superior Handling: The U500SC’s intelligent control system automatically adapts to terrain. Take on slopes up to 20 degrees with a 10" ground clearance and a 72.5" wheelbase.
- Heavy-Duty Capacity: Tackle heavy-duty tasks with ease, thanks to the 330 lbs. capacity spring-assisted dump bed, 1,000 lbs. payload capacity, and 1,250 lbs. rear towing capability.
Features
ALL ELECTRIC
The U500SC’s 8kWh max gTRON Drive™ System provides powerful, all-electric operation equivalent to a 22 HP, 352 cc displacement gas engine with the benefits of reduced maintenance costs, quieter operation, and flexibility. With its efficient 82V lithium-ion battery, the U500SC helps you save up to $5,000 over 5 years versus gas-powered UTVs.
ZERO EMISSIONS
RANGE PER CHARGE
With the ability to travel up to 40 miles on a full charge, the U500SC allows you to cover vast distances while minimizing the need for frequent interruptions for recharging. With a manageable 7-hour charge time, operators can strategically plan downtime, allowing the UTV to recharge during breaks or overnight, ensuring it's ready for extended use during the workday.
GROUND SPEED
With an impressive maximum speed of 27 MPH, the U500SC allows for swift and timely transportation between work sites, reducing travel time and optimizing overall task completion. This increased speed not only facilitates quicker response times but also enables operators to cover more ground in a shorter period, contributing to improved workflow and task distribution.
FOUR-WHEEL DRIVE
The 4WD direct drive system offers enhanced traction and stability, enabling operators to efficiently carry out tasks across different environments without compromising on safety or efficiency. With an intelligent control system, the U500SC automatically adjusts as conditions change, ensuring reliable performance across diverse landscapes and slopes up to 20 degrees.
ALL TERRAIN
The U500SC’s remarkable 10-inch ground clearance and expansive 72.5-inch wheelbase ensure unparalleled stability and maneuverability to heighten productivity and reduce operational challenges. The increased ground clearance enables it to surmount obstacles with ease, while the extended wheelbase contributes to a smoother and more controlled ride.
BUILT TO WORK
The U500SC's robust design is tailored for maximum efficiency with a remarkable 1,000 lbs. payload capacity and 1,250 lbs. rear towing capability. Whether you're hauling equipment or towing a trailer, this UTV delivers unparalleled versatility and efficiency to streamline operations.
SPRING-ASSISTED CARGO DUMP BED
With a 32x42x12-inch cargo bed capable of transporting up to 330 lbs., the U500SC is an ideal solution for diverse commercial applications. The spring-assisted system ensures smooth and controlled operation when dumping materials or unloading equipment, and the generously sized cargo bed efficiently transports tools, equipment, and materials.
Specifications
UTV LINE UP
MODEL | CU400W | CU500SC & CU500SB | CU800SC & CU800SB |
BATTERY CAPACITY | 8kWh | 8kWh | 16kWh |
MAX RANGE | 65 Miles | 40 Miles | 75 Miles |
MAX FORWARD SPEED | 15 MPH | 27 MPH | 29 MPH |
TOWING CAPACITY | 500 Lbs. | 1,250 Lbs. | 1,500 Lbs. |
PAYLOAD | 1.000 Lbs. | 1,000 Lbs. | 1.000 Lbs. |
GROUND CLEARANCE | 8.5 In. | 10 In. | 12.2 In. |
OPERATING WEIGHT | 1,069 Lbs. | 1,458 Lbs. | 1,752 Lbs. |
UTV LINE UP
MODEL | |||
UTV LINE UP
MODEL | CU400W | CU500SC & CU500SB | CU800SC & CU800SB |
BATTERY CAPACITY | 8kWh | 8kWh | 16kWh |
MAX RANGE | 65 Miles | 40 Miles | 75 Miles |
MAX FORWARD SPEED | 15 MPH | 27 MPH | 29 MPH |
TOWING CAPACITY | 500 Lbs. | 1,250 Lbs. | 1,500 Lbs. |
PAYLOAD | 1.000 Lbs. | 1,000 Lbs. | 1.000 Lbs. |
GROUND CLEARANCE | 8.5 In. | 10 In. | 12.2 In. |
OPERATING WEIGHT | 1,069 Lbs. | 1,458 Lbs. | 1,752 Lbs. |
TOW/HAUL SPECS
Wheelbase | 72.5" |
Ground Clearance | 10" |
Payload Capacity | 1000lbs |
Tow Capacity | 1250lbs |
Horsepower | 22HP Equivalent |
Engine Displacement (cc) | 352cc Equivalent |
Suspension System | Independent, Dual A-Arm Type |
Brakes (Front/Rear) | Hydraulic Disk Brakes |
Cargo Bed Capacity | 330lbs |
Cargo Bed Dims | 32"(L) x 42"(W) x 12"(D) x 10.24cu.ft (V) |
Ground Speed | Up to 27 MPH |
Tires/Wheels | Front: Turf 24x8-12 | Rear: Turf 24x8-13 |
Safety Features | Standard High-Intensity LED Headlights |
Seat (Type, Cushioning, Arm Rest) | Bench seat |
Steering Controls | EPS |
Lighting | High-Intensity LED Headlights |
Unit Weight (No battery) | 1752Ibs |
Unit Dimensions | 118" (L) × 63"(W) × 80.7" (H) |
Accessory / Tool Mounting Capability | Front Hitch Winch, Mud Tire Options, Tool Rack |
IPX Rating | IPX4 Water Resistant |
BATTERY
Voltage | 82V |
Capacity (Wh) | 8KWh |
Weight (Ibs.) | 187Ibs |
Dimensions | 9.6"×22"×18.4" |
CHARGER
Charge Watts | 1.5KW |
Charge Time | 7 hours |
Weight | 6.2Ibs |
Dimensions | 13.27×76" |
DRIVE SYSTEM
Voltage | 82V |
Motor Type | AC Induction |
Power Rating | 15kW Max. |
Main Gearcase | Direct Drive |
Wheel Drive System | 4WD |
Front Differential Lock | Electric control |
Multi-Mode Switch | L/M/H |
Warranty
- 82v Commercial Handheld tools, battery, and chargers: 2-year limited warranty
- 82v Consumer/Prosumer lineup: 4-year limited warranty
- 24/48v warranty: 3-year limited warranty
- Commercial ZTR Warranty: 5-year or 2,000-hour warranty
- NEW residential/consumer warranty on our COMMERCIAL ZTRs: 7-year or 700-hour warranty
- Commercial UTV warranty: 5-year battery warranty, 2-year bumper to bumper warranty
- Wearable Parts: 60-day warranty
